Embedded Board
-
SOM304SX-31PINE1
System on Module - ICOP Proprietary- DM&P SoC Vortex86SX- 300MHz
- 128MB DDR2 onboard
- 4S / 4U / LAN / LPT / 32GPIO / PWM / IDE / PCI / ISA
- Onboard 2MB SPI Flash
- 304-pin module, PCI, standard ISA bus
- Support LPC Bus
- 70 (L) x 70 (W) x 10.5 (H)mm, DC +5V @ 380mA
- Optional: Onboard flash up to 4GB
-

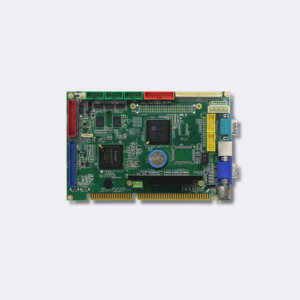

VSX-6121-V2
Half-size SBC- DM&P SoC Vortex86SX – 300MHz
- 2S / 4U / LPT / 16GPIO / IDE
- 256MB DDR2 onboard
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 2MB SPI Flash
- PC / 104 Connector Onboard
- Optional: Onboard Flash Disk / PCI-104 Connector
-
VDX-6372RD
PC/104 SBC- DM&P SoC Vortex86DX- 600MHz
- 128MB DDR2 onboard
- 2S / 2U / VGA / LCD / LPT / PWM / 16GPIO / IDE
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Optional: PC / 104+ Connector
Industrial Panel PC
-
HMI-043T-EM41B-B02
HMI Series- DM&P SoC Vortex86EX- 400MHz
- 128MB DDR3 onboard
- S / U / LAN / eMMC-512MB SLC / PoE / 7~24V
- 4.3 inch TFT 480×272 Resolution LCD with resistive touchscreen
- Operation Temperature: 0 ~ +50°C
- CE / FCC / VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration
- Wide power voltage input, DC +7~24V
- Support IEEE 802.3AF, PoE/PD
-
PBSW-090T-P8AE84G64W
Panel PC SeriesPBSW-090T-P8A-E8-4G + IM242S-64G-M + Win10_16_LTSB_Entry License and Image pre-installed.
- Intel® Braswell x5-E8000 Processor (Quad Core)
- 4GB DDR3L onboard
- S / 2U / GLAN / Audio / M.2-2242 / MiniPCIe / 12~36V
- The COM on this device is an Intel Internal SIO HSUART
- 9″ TFT 1024×600 Resolution LCD with Projected Capacitive touch screen
- Operation Temperature: 0 ~ +50°C
- M.2 Slot Support (M-key, SATA interface, 2242)
- MiniPCIe socket with Micro SIM Card Holder
- Wide power voltage input, +12~36VDC
*8A: +12V ~ +36VDC power input by terminal block PCAP touch standard
-
VOX-150-TS-D3
OpenFrame- DM&P SoC Vortex86-DX3- 1GHz
- 1GB RAM onboard
- 4S / 4U / VGA / LCD / LVDS / 2GLAN / LAN / PWM / Audio / 16GPIO / SATA / 5V&12V
- 15 inch TFT 1024×768 Resolution LCD with resistive touchscreen
- Operation Temperature: 0 ~ +50°C
- Brightness 350nits and Backlight 50,000hrs
- Default SBC: VDX3-6726-1G
- Can install any ICOP’s 3.5
-
PPC-150T-D2N4N
Panel PC Series- DM&P SoC Vortex86-DX2- 933MHz
- 1GB RAM onboard
- 2S / 3U / GLAN / LAN / Audio / SATA / CF / 12~24V
- 15 inch TFT 1024×768 Resolution LCD with resistive touchscreen
- Operation Temperature: 0 ~ +50°C
- CF & SATA sockets onboard
- CE / FCC / VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration
- Wide power voltage input, DC +12~24Vdc
Box PC
-
EBOX-3352DX3-GLAPW
Mini PC- DM&P 32-bit x86 Vortex86DX3 Dual Core 1.0GHz SoC
- 2GB DDR3-1600MHz onboard
- SD card lot x1 (SD, SDXC)
- Fanless design
- 1 Gbps LAN x1
- USB 2.0 port x3
- Auto Power On
- PXE Diskless Boot
- Ultra low power
- 75 x 75mm VESA Standard
- Operation Temp. -20~+70 ℃
-
EBOX-3100
Mini PC- DM&P 32-bit x86 Vortex86EX 400MHz SoC
- 512MB DDR3 onboard
- SD card slot x1, RS-232 x1, 10 / 100 Mbps LAN x1, USB x2, Mic in & Line out
- Auto Power On support
- PXE Diskless boot support
- SDHC SD card support
- DC +5V 0.45A
- Wide Operation Temperature: -40~+85°C
- Text mode Linux, RTOS (VxWorks, QNX, FreeBSD), DOS OS support
* Unit price included 10W Power supply & power plug
-
EBOX-3352DX3-RCAV-AP
Mini PC- DM&P 32-bit x86 Vortex86DX3 Dual Core 1.0GHz SoC
- 2GB DDR3-1600MHz onboard
- Micro SD Slot x1 (Micro SD, SDXC)
- Fanless design
- 10/100 Mbps LAN x1
- SATA DOM support
- mPCIe WiFi/BT module support
- USB 2.0 port x3
- RCA port x2
- Auto Power On
- PXE Diskless Boot
- Ultra low power
- 75 x 75mm VESA Standard
- Operation Temp. 0~60 ℃
EtherCAT
-
QEC-M-01
EtherCAT MasterEtherCAT Master System.
- DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz
- EtherCAT Master Core runs on a dedicated CPU
- Hardware/Software Real-time
- 86Duino Integrated Development Environment (IDE)
- Up to 128 axes support, motion control
- Internal Monitoring Hardware Information
- Operating temperature -20 to +70°C/-40 to +85°C (Option)
- 3LAN / USB / MicroUSB / RS485 / Audio
Certifications:
Support Links: Datasheet | User Manual | Software Download
-
QEC-M-070T
EtherCAT Master- DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz
- EtherCAT Master Core runs on dedicated CPU
- Hardware/Software Real-time
- 86Duino Integrated Development Environment (IDE)
- Up to 128 axes support for motion control
- 7-inch TFT 800×480 Resolution LCD with Restive touchscreen
- Internal Monitoring Hardware Information
- Operating Temperature -20 to +70°C/-40 to +85°C (Option)
- 3LAN / 3USB / MicroUSB / VGA / MiniPCIe / Arduino Pins
-
QEC-R00DF0H-N
Digital IO- Built-in Isolated 16 channel Digital Input
- DI Load Voltage Rating Up to 56VDC
- 2500 Vrms Isolation Voltage Protection
- Internal Monitoring Hardware Information
- Support EtherCAT Distributed Clock (DC) Mode
- EtherCAT Conformance test tool verified
- Operating Temperature -20 to +70 °C
-
QEC-R00D0FH-N
Digital IO- Built-in Isolated 16 channel Digital Output
- DO Load Voltage Rating Up to 56VDC
- 3750 Vrms Isolation Voltage Protection
- Internal Monitoring Hardware Information
- Support EtherCAT Distributed Clock (DC) Mode
- EtherCAT Conformance test tool verified
- Operating Temperature -20 to +70 °C
Others
-
86SENSE RM-320
Sensor- Force Range: +2000N/-1000N
- Moment Range: ±40 N-m
- Force in Z: 0.1 N
- Moment in X,Y: 0.005 N-m
- Data output rate: >500Hz
- Communication: RS485 up to 6M bps
- Temperature compensation: 15°C to 35°C
- Weight: 250g
-
86STEP-423409
Motor- Stall Detection, Position Verification, Accurate Homing, and Close-loop control with step motor benefit
- Holding torque: 280mN.m
- Step angle: 0.9°
- Detent torque: 12mN.m
- Rated Current: 0.75A
- Weight: 0.2kg
-
86STEP-426009
Motor- Stall Detection, Position Verification, Accurate Homing, and Close-loop control with step motor benefit
- Holding torque: 860mN.m
- Step angle: 0.9°
- Detent torque: 20mN.m
- Rated Current: 1.50A
- Weight: 0.45kg
-
86STEP-577609
Motor- Stall Detection, Position Verification, Accurate Homing, and Close-loop control with step motor benefit
- Holding torque: 1800mN.m
- Step angle: 0.9°
- Detent torque: 70mN.m
- Rated Current: 3.0A
- Weight: 1.0kg
