DM&P SoC Vortex86DX- 800MHz

The DM&P Vortex86DX 800MHz SoC is a reliable 32-bit x86 processor used in ICOP’s System-on-Module (SOM) and embedded board solutions. Supporting ISA, PCI, LAN, GPIO, and I2C interfaces, it is ideal for data acquisition, process control, and industrial automation.

Showing 1–12 of 16 resultsSorted by popularity

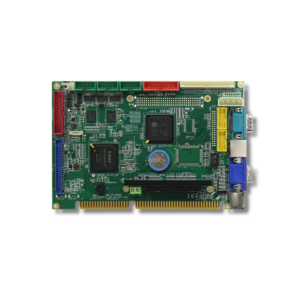

  • eShop pic_VDX-6324RD-V2

    VDX-6324RD-V2

     Half-size SBC US$ 289.00
    • DM&P SoC Vortex86DX – 800MHz
    • 4S / 4U / VGA / LCD / LAN / LPT / PWM / 16GPIO / CF / IDE
    • 256MB DDR2 onboard
    • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
    • Onboard 4MB SPI Flash
    • PC / 104 Connector Onboard
    • Optional: Onboard Flash Disk / CF socket / PCI-104 Connector / Audio



  • VDX-6353RD-V2-1

    VDX-6353RD-V2

     PC/104 SBC US$ 300.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB / 512MB DDR2 onboard
    • 4S / 2U / VGA / LCD / LVDS / LAN / LPT / PWM / SPI / 16GPIO / CF / IDE
    • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
    • Onboard 4MB SPI Flash Disk
    • Optional: USB Audio Controller


    Shipping & Availability
    Standard Lead Time: 10–15 Business Days
    Ships from Taiwan. Contact us for bulk pricing and availability.
  • SOM304RD52PINE1 f

    SOM304RD-52PINE1

     System on Module - ICOP Proprietary US$ 204.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB DDR2 onboard
    • 4S / 4U / LAN / LPT / 32GPIO / I2C / PWM / IDE / PCI / ISA
    • Onboard 4MB SPI Flash
    • 304-pin module, PCI, standard ISA bus
    • Support LPC Bus
    • 70 (L) x 70 (W) x 10.5 (H)mm, DC +5V @ 480mA
    • Optional: Onboard flash up to 4GB, up to 32 PWM
  • VDX-6372RD-V2

    VDX-6372RD-V2

     PC/104 SBC US$ 266.00
    • DM&P SoC Vortex86DX- 600MHz
    • 256MB DDR2 onboard
    • 2S / 2U / VGA / LCD / LPT / PWM / 16GPIO / IDE
    • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)


    Shipping & Availability
    Standard Lead Time: 10–15 Business Days
    Ships from Taiwan. Contact us for bulk pricing and availability.
  • VDX-6319RD-FB-D f

    VDX-6319RD-FC-D

     System on Module - ICOP Proprietary US$ 237.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB DDR2 onboard
    • 2S / U / LPT / 16GPIO
    • Onboard 4MB SPI Flash
    • 128-pin CPUmodule, 64-pin 16-bit x-ISA, 64-pin I / O
    • Onboard 1GB EmbedDisk
    • 65 x 45mm DC +5V @400mA
  • NEW-SOM200RD52XINE1 f

    SOM200RD-52XINE1

     System on Module - ICOP Proprietary US$ 202.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB DDR2 onboard
    • 5S / 4U / LAN / LPT / 32GPIO / I2C / PWM / IDE
    • Onboard 4MB SPI Flash
    • 200-pin module, 16-bit x-ISA
    • Support LPC Bus
    • 52 (L) x 52 (W) x 10.5 (H)mm, DC +5V @ 600mA
    • Optional: Onboard flash up to 4GB, up to 32 PWM
  • SOM200RD52PCNE1 f

    SOM200RD-52PCNE1

     System on Module - ICOP Proprietary US$ 202.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB DDR2 onboard
    • 5S / 4U / LAN / LPT / 32GPIO / I2C / PWM / IDE / PCI
    • Onboard 4MB SPI Flash
    • 200-pin module, Standard PCI bus
    • Support LPC Bus
    • 52 (L) x 52 (W) x 10.5 (H)mm, DC +5V @ 420mA
    • Optional: Onboard flash up to 4GB, up to 32 PWM
  • VDX-6328RD-NF

    VDX-6328RD-NF-V2

     3.5" SBC US$ 310.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB / 512MB DDR2 onboard
    • 4S/3U/VGA/LCD/LVDS/LAN/PWM/Audio/16GPIO/CF
    • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
    • Onboard 4MB SPI Flash Disk
    • PC / 104+ Connector Onboard


    Shipping & Availability
    Standard Lead Time: 3–5 Business Days
    Need larger quantities or custom config? Send Inquiry →
  • VDX-6316RD

    VDX-6316RD

     Tiny SBC US$ 212.00
    • DM&P SoC Vortex86DX-800MHz
    • 256MB DDR2 onboard
    • 2S / 2U / LPT / 32GPIO / IDE
    • Operation Temperature: -20~+70°C / -40°C~+85°C (Optional)
    • Onboard 4MB SPI Flash Disk
    • 16bit x-ISA
    • Optional：512KB SRAM
  • VDX-6315RD f

    VDX-6315RD

     Tiny SBC US$ 234.00
    • DM&P SoC Vortex86DX-800MHz
    • 256MB DDR2 onboard
    • 4S / 2U / LAN / LPT / 32GPIO / IDE
    • Operation Temperature: -20~+70°C / -40°C~+85°C (Optional)
    • Onboard 4MB SPI Flash Disk
    • 16bit x-ISA
    • Optional：512KB SRAM
  • VDX-6314RD f

    VDX-6314RD

     Tiny SBC US$ 289.00
    • DM&P SoC Vortex86DX-800MHz
    • 256MB DDR2 onboard
    • 4S / 2U / VGA / LVDS / LAN / 16GPIO / IDE
    • Operation Temperature: -20~+70°C / -40°C~+85°C (Optional)
    • Onboard 4MB SPI Flash Disk
    • Optional：Audio
  • VDX-DIP-PCIRD

    VDX-DIP-PCIRD

     System on Module - ICOP Proprietary US$ 175.00
    • DM&P SoC Vortex86DX- 800MHz
    • 256MB DDR2 onboard
    • 5S / 4U / LAN / IDE / PCI / 32GPIO / PWM
    • Onboard 4MB SPI Flash
    • 204-pin module, 204 pins for for PCI & Multi-I / O
    • Support LPC Bus
    • 70 x 45mm, DC +5V @ 340mA
    • Optional: up to 3 PWM
