PDX-057T-RD8A(2D)

PDX3-057T-8A-2G

$563.00

  • DM&P SoC Vortex86DX3- 1GHz
  • 2GB DDR3 onboard
  • S / 2U / LAN / Audio / CF / 8~35V
  • 5.7 inch TFT 640×480 Resolution LCD with resistive touchscreen
  • Operation Temperature: 0 ~ +50°C
  • CF socket onboard
  • CE / FCC / VCCI Certification, Shock and Vibration
  • Wide power voltage input, DC +8~35Vdc



* 8A: +8V ~ +35VDC power input by terminal block

Out of stock

SKU: PDX3-057T-8A-2G Category: Tag:

PDX3-057T is an ultra-compact platform for the present demanding embedded and productive applications. It has a new Vortex86DX3 SoC CPU which consumes only minimum power requirement when running at 1GHz, and DDR3 memory provides a faster data transfer rate. By using a 5.7” TFT LCD, PDX3-057T becomes the perfect choice for a limited budget. In addition, the integrated 10/100M Ethernet port supplies the communication capability which makes PDX3-057T can be more widely used when running with Linux, Windows CE, Windows XP, Windows 7, Windows Embedded environments to become the perfect solution for system integration.

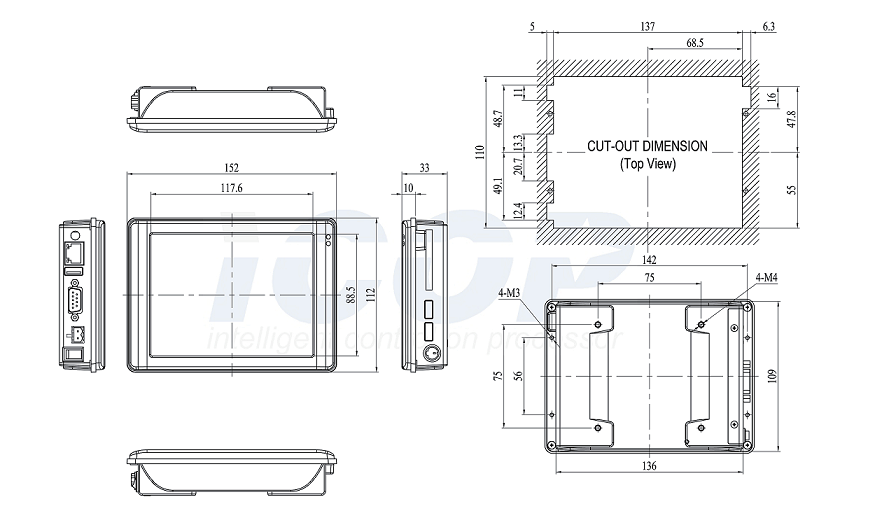

Dimensions:

Weight 800 g
Dimensions 220 × 237 × 70 mm
RAM

1GB, 2GB
I/O Interface

RS-232, RS-422, RS-485, USB, LAN, Audio, CF
Screen size

5.7"
Power Supply

8~35V
Manufacturing

ICOP Technology

Specifications

CPU Board Specifications
CPU DM&P Vortex86DX3 – 1GHz
Cache L1:16KB I-Cache, 16KB D-Cache
L2: 512KB Cache
BIOS AMI BIOS
Memory 2GB DDR3 onboard
Watchdog Timer Software programmable from 30.5u to 512 seconds x 2 sets
LAN Integrated 10/100M Ethernet
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives Compact Flash Type I / II slot
I/O RS-232/422/485 x 1
USB ports (Ver2.0) x 2
RJ-45 Port x 1
Mechanical & Environment
Power Requirement Multi-Voltage +8~+35VDC (PDX3-057T-8A)
Power Consumption 20W (Max.)
Operating Temperature 0 ~ +50℃ ( 32 ~ +122℉)
Storage Temp. -30 ~ +70℃ ( 14 ~ +158℉)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Dimensions 152 x 112 x 33mm (5.98 x 4.41 x 1.3 inches)
Weight 500g
Certification CE
FCC
VCCI
Vibration
Shock
LCD Specifications
Display Type 5.7” TFT LCD
Backlight Unit LED
Display Resolution 640(W) x 480(H)
Brightness (cd/m²) 500 nits
Contrast Ratio 300: 1
Display Color 262, 144
Dot Pitch (mm) 0.06 (W) x 0.18 (H)
Viewing Angle Vertical 100°
Horizontal 140°
Backlight Lifetime 50,000 hrs
Touchscreen
Type Analog Resistive
Resolution Continuous
Transmittance 80%
Controller PS / 2 interface
Software Driver Linux
WinCE
WinXP
Win7
Windows Embedded Standard
Durability 1 million

Distributor

Distributor: https://www.icop.com.tw/distributors

Direct Hyperlink

PDX3-057T-V1.3

Download

PDX3-057T-User Manual

Download
