$400.00
Availability: In stock
EBOX-58N-L2T4F-AP fanless PC powered by Intel® Braswell N3160 processor,
supports up to 8GB DDR3L, Dual Giga LAN, and RS485 x4 (2 x opto-isolated)
and UEFI and Legacy mode BIOS switchable.
System delivers efficient performance, reliable communication, and enhanced protection for industrial applications.
Appearance Diagram:
| Weight | 610 g |
|---|---|
| Dimensions | 115 × 115 × 48.5 mm |
| Brand | ICOP Technology |
| I/O Interface | RS-485, USB, GLAN, M.2, SATA |
| Display Interface | HDMI |
| Manufacturing | ICOP Technology |
| Power Supply | DC In +15V~56V Lockable Terminal Block Connector |
| Processor | Intel® Celeron® N3160 Quad Core 1.6GHz, 2.24GHz (Burst) |
| BIOS | AMI UEFI BIOS |
| Memory | SO-DIMM, DDR3L-1600MHz up to 8GB |
| Storage | SATA Gen3 x1, SATA SLIM 7+15 pin internal |
| Display | HDMI V1.4b (MAX. 3840 × 2160 pixels) |
| USB | USB V3.0 x2 |
| Ethernet | Realtek RTL8111H GBE x2 (Built-in PXE diskless boot) |
| RS-485 | RS-485 x4 (2 x Opto-Isolated), Lockable 8-Pin 5.0mm Screw Terminal Block |

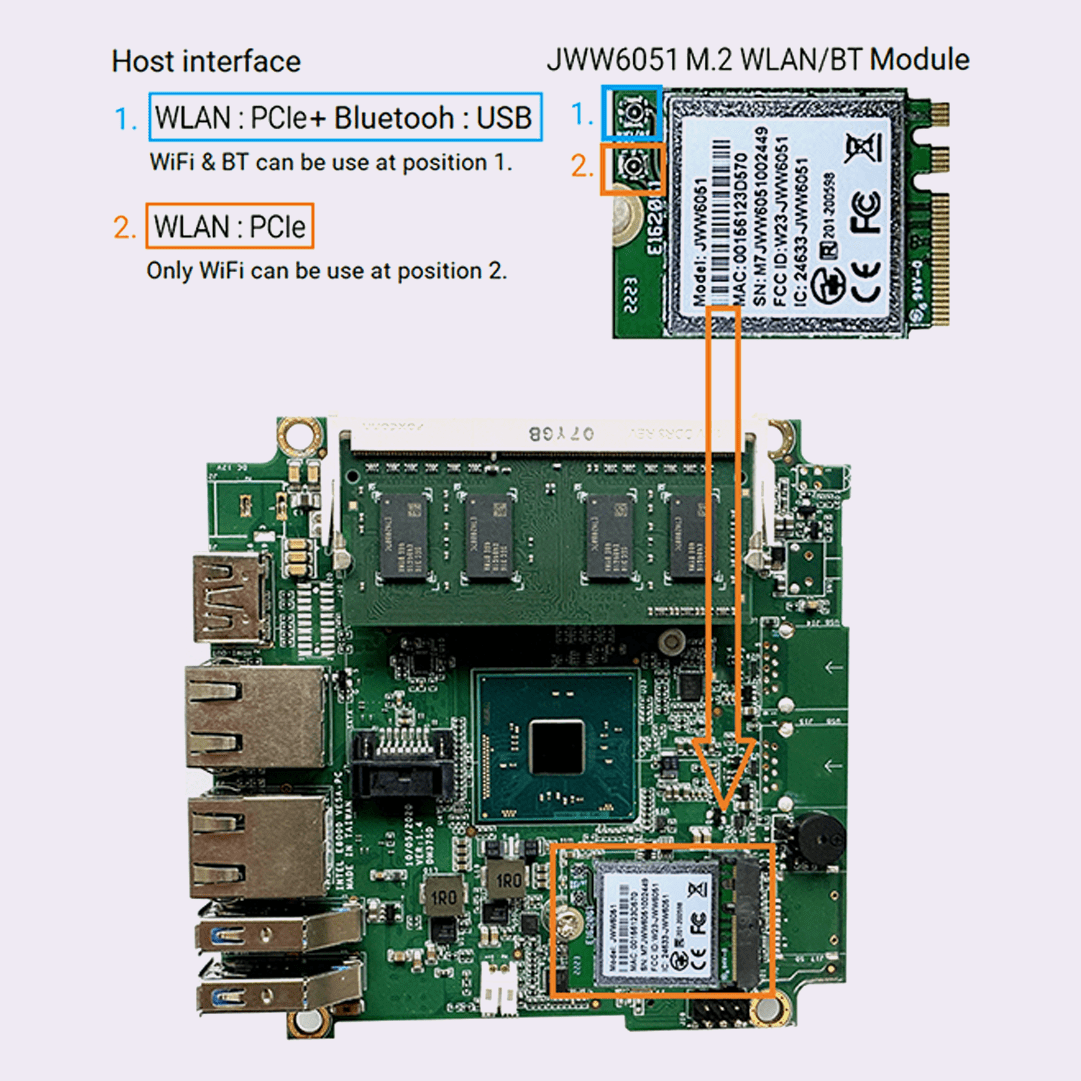

| Extension | M.2 E-key x1 (2230), PCIe x1 interface (WLAN/BT) |
| Power requirement | DC In +15V~56V Lockable Terminal Block Connector |
| Dimension | 115 x 115 x 48.5mm |
| Mounting | VESA 100 x 100mm/DIN Rail Support (Optional) |
| Net Weight | 610g |
| Operating Temp | 0~60℃ |
| Security Support | TPM 2.0, Infineon SLB9665VQ2.0 (Optional) |
| Certifications | CE, FCC, VCCI |
| OS Support | Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian |
