VOX-070-TS-EX2-V-I

Name: VOX-070-TS-EX2-V-I
SKU: VOX-070-TS-EX2-V-I
Availability: InStock

$370.00

庫存量: 尚有庫存

貨號: VOX-070-TS-EX2-V-I 分類: 開放式框架標籤: DM&P SoC Vortex86EX2- 600MHz

尺寸:

重量	1100 公克
尺寸	249 × 154 × 48 公厘
螢幕尺寸	7"
記憶體	1GB, 2GB
I/O 介面	RS-232, RS-485, USB, LAN, CAN Bus, Audio, Mini PCIe, GPIO, SD
電源供應	12~36V
製造商	ICOP Technology

規格

處理器	DM&P SoC Vortex86EX2 Master CPU 600MHz (Optional Slave CPU 400MHz) L1:I/D-Cache 16/16KB L2: 128KB
LCD 顯示套件	7″ WVGA TFT LCD with resolution 800 (W) x 480 (H), 400 nits and resistive touch screen / 1,000 nits (Optional)
擴充接口	MiniPCIe x4 (SIM card holder support on MiniPCIe1)
BIOS	Coreboot BIOS
儲存裝置	1GB DDR3 板載
網路	Integrated 10/100Mbps Ethernet
支援磁碟	SD Slot (SDXC support) x2
可編程 I/O	USB2.0 x4 CAN bus (2.0A/2.0B) x1 Speak Out (R) x1	8-bit GPIO MIC-in x1	RS232 x5 (1x RS232/485) Speak Out (L) x1
端口	1.25mm 5-pin wafer for USB x4 1.25mm 10-pin wafer for GPIO x1 1.25mm 2-pin wafer for Speak Out (R) x1 1.25mm 4-pin wafer for LEDs x1 MiniPCIe slot x4	1.25mm 3-pin wafer for CAN Bus x1 1.25mm 4-pin for MIC-in x1 1.25mm 3-pin wafer for RS232 (Tx&Rx) x3 2.0mm 4-pin wafer for Power Input x1 Micro SIM card holder x1	1.25mm 8-pin wafer for LAN x1 1.25mm 2-pin wafer for Speak Out (L) x1 1.25mm 10-pin wafer for RS232 x2 2.0mm 4-pin wafer for PoE x1 (Optional)
Headers	2.0mm 2-pin header for Console Selection (COM1)	2.54mm 2-pin header for Hardware Reset	2.54mm 2-pin header for COM9 RS485 Selection
電源需求	+12 to +36VDC Power Input
電源消耗	7Watt (Typical)
工作溫度	-30°C to +80°C

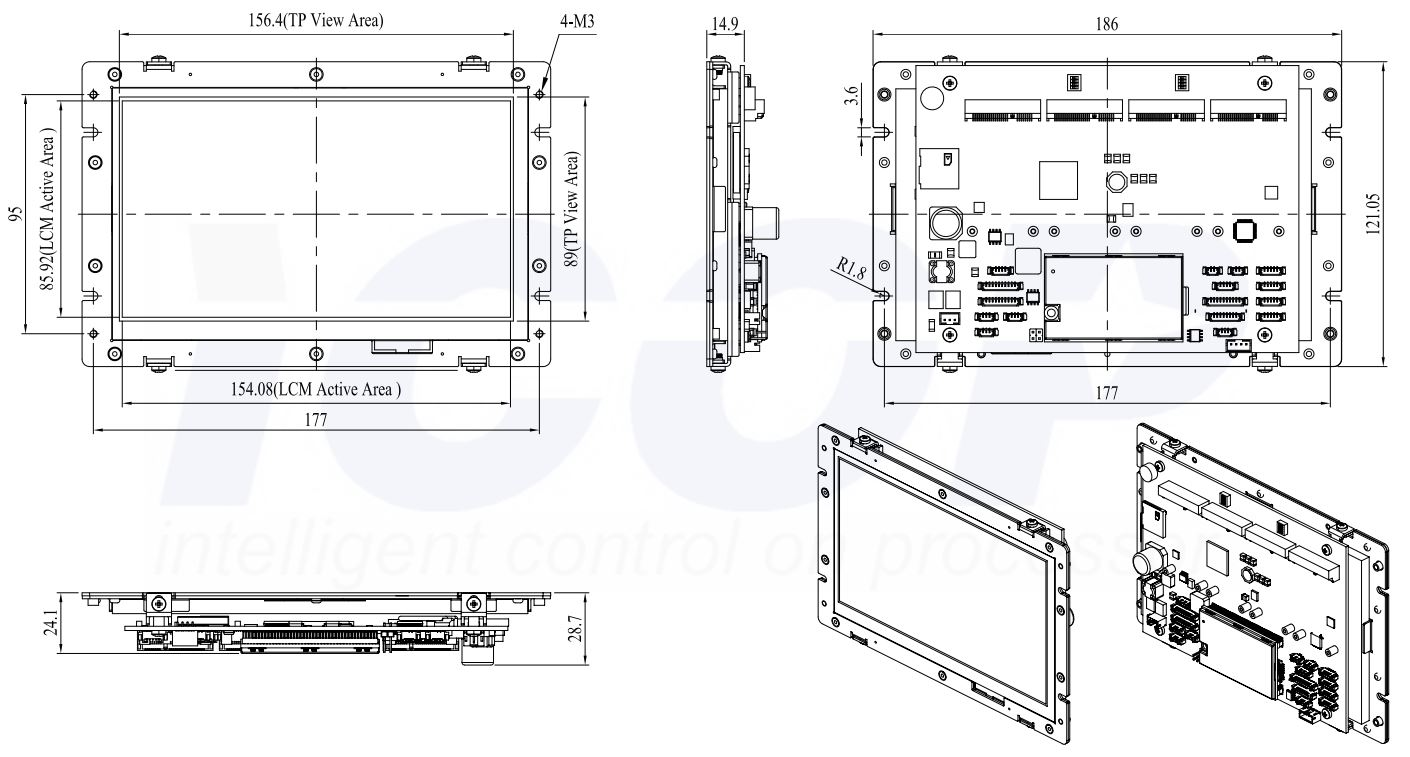

尺寸	186 x 123 x 24mm
重量	485g
操作系統支持	Windows Embedded Compact 7 Buildroot DOS	Windows Embedded CE6.0 POS Ready (WePOS) Linux	QNX FreeBSD
