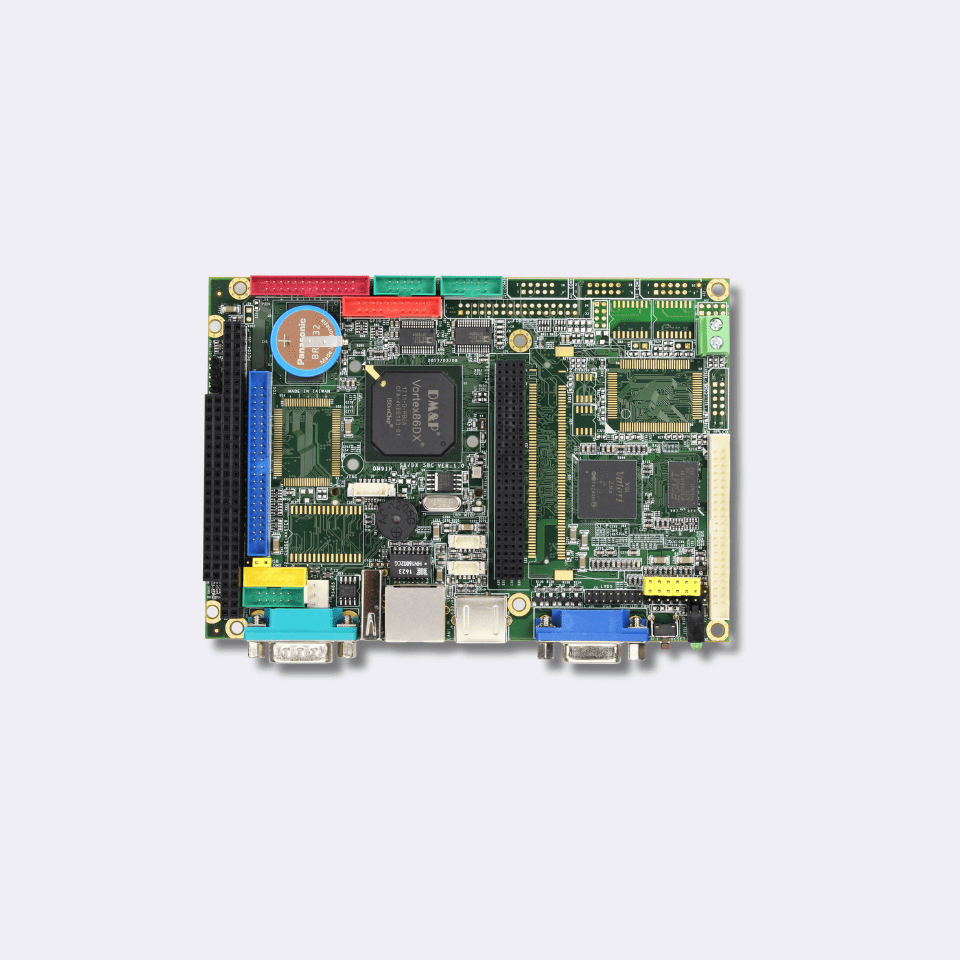

VDX-6328RD-NF

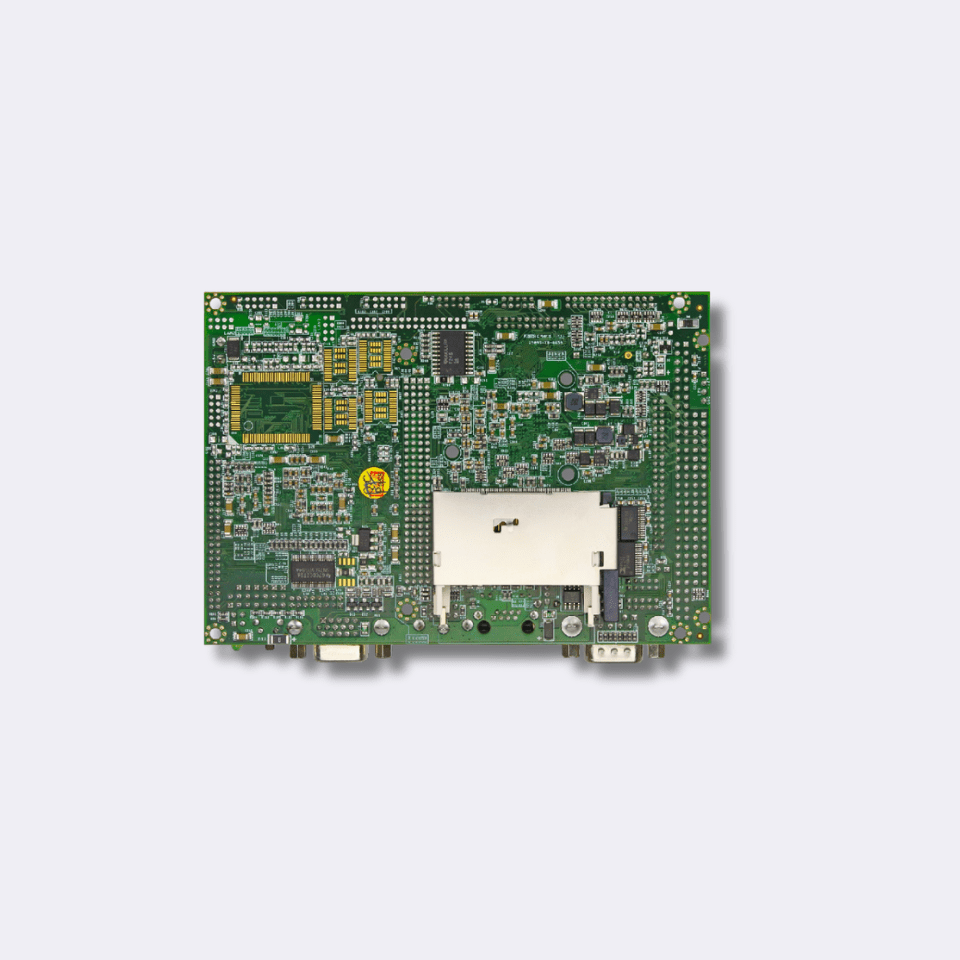

VDX-6328RD-NF_1

VDX-6328RD-NF

US$ 306.00

  • DM&P SoC Vortex86DX- 800MHz
  • 256MB / 512MB DDR2 onboard
  • 4S/3U/VGA/LCD/LVDS/LAN/PWM/Audio/16GPIO/CF
  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
  • Onboard 4MB SPI Flash Disk
  • PC / 104+ Connector Onboard

Availability: Only 1 left in stock

- +
SKU: VDX-6328RD-NF Category: Tag: Brand:
Send Inquiry

The VDX-6328RD-NF series of low-power x86 embedded controllers are designed to meet the 3.5-inch specifications and have backward compatibility, thus providing a life-cycle challenged migration path for projects using their existing x86-based 3.5-inch controllers.

In addition, the VDX-6328RD-NF series controllers are designed as replaceable plug-ins, with backward compatibility to support older versions of software, thus helping to extend the life cycle of existing products without the need for extensive redesign.

VDX-6328RD-NF is suitable for a wide range of data acquisition, industrial automation, process control, automotive controllers, AVL, intelligent vehicle management equipment, medical equipment, human-machine interfaces, robotics, mechanical control, etc.

Contact info@icop.com.tw for detailed info.

Weight 800 g
Dimensions 320 × 210 × 80 mm
RAM

256MB, 512MB
I/O Interface

RS-232, USB, Mic-in, Line-out, GPIO, IDE, PCI-104
Display Interface

VGA, LCD, LVDS
Manufacturing

ICOP Technology

Specifications

CPU DM&P SoC CPU Vortex86DX- 800MHz
Cache L1:16K I-Cache, 16K D-Cache L2 Cache 128KB
BIOS AMI BIOS
Bus Interface PC/104+ Standard Compliant
Mini PCI standard compliant
System Memory 256/512MB DDR2 Onboard
Display SM712 Chipset with VGA, TFT-LCD, and 18-bit LVDS Flat Panel Interface
VGA: Maximum resolution up to 1280 x 1024 @ 60Hz
LVDS/TFT-LCD: Maximum resolution up to 1024 x 768 @ 60Hz
I /O Interface Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x1
RS-232/422/485 port x1 (RS485: Auto Direction)
Parallel port x1
USB port x2 (USB 2.0 version)
16-bit GPIO port x1
Connectors 2.54mm 4-pin pin header for +12V, -12V, -5V, GND x1
2.54mm 104-pin PC/104 connector x1
2.0mm 44-pin box header for LCD x1
2.0mm 10-pin box header for RS232 x3
15-pin D-Sub female connector for VGA x1
Mini-DIN connector for Keyboard/Mouse x1
0.8nn 124-pin Mini PCI connector x 1 (Optional)
2.54mm 2-pin pin header for Reset x1
2.0mm 16-pin pin header for LVDS x1
2.0mm 26pin box header for Parallel x1
2.0mm 10-pin box header for USB x1
9-pin D-Sub female connector for RS232 x1
Type I/II Compact Flash Slot x1
2.54mm 3-pin pin header for RS485x1
2.0mm 44-pin box header for IDE x1
2.0mm 20-pin box header for 16-bit GPIO x1
1.25mm 4-pin wafer for Line-in/MIC-out x2
RJ45 connector for Ethernet x1
USB connector x1
Disk Support IDE DoM
Compact Flash
Onboard 4MB SPI Flash Disk
LAN Integrated 10/100Mbps Ethernet x1
Power Requirement DC +5V @ 960mA
Dimension 102 x 146mm
Weight 150g
Operating Temperature -20°C ~ +70°C
-40°C ~ +85°C (Optional)
O/S Support Windows Embedded 2009
Linux
Free BSD
Windows Embedded CE6.0
DOS
VxWorks
Windows Embedded CE5.0
POS Ready (WePOS)
