所有產品 » 86Duino » 伺服馬達 » 86SERVO T600

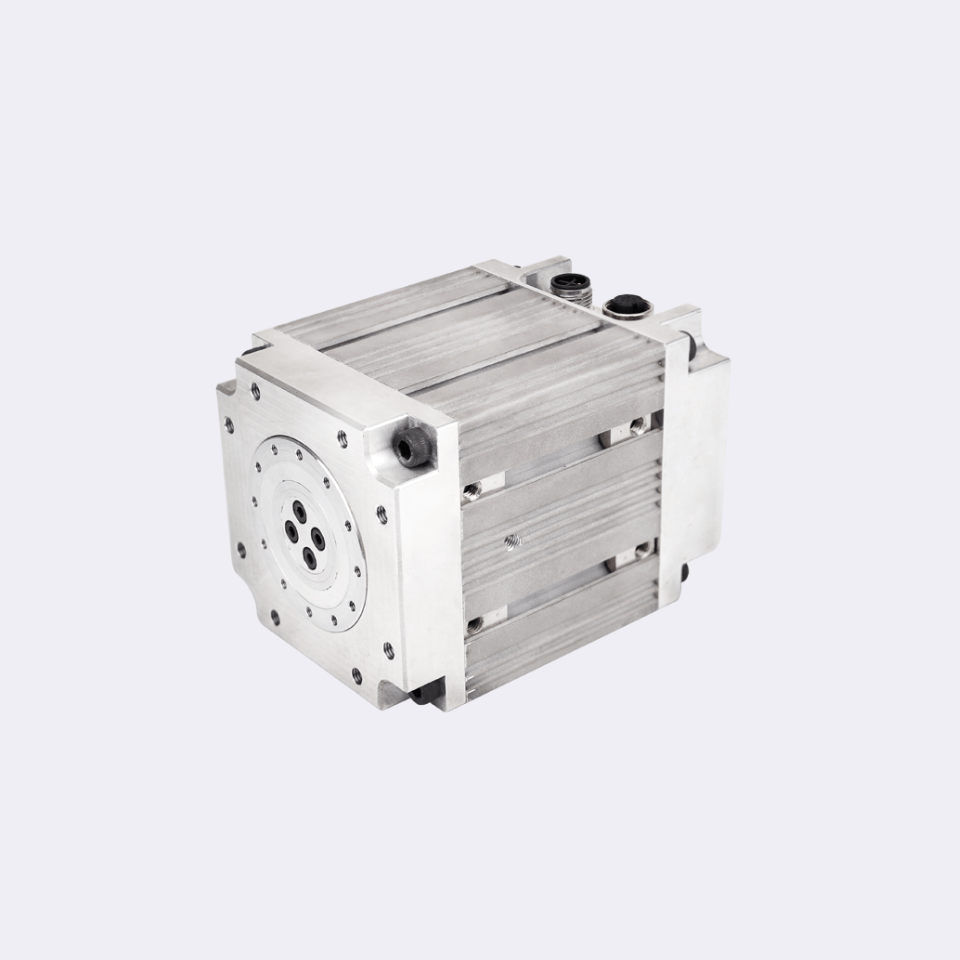

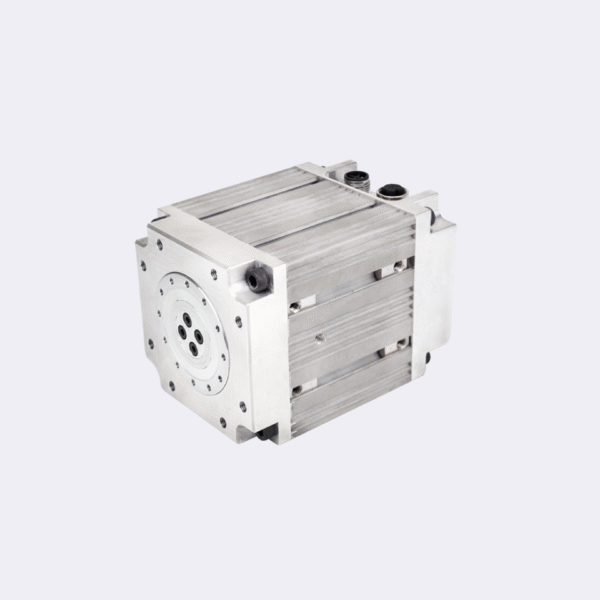

86SERVO_T600 - 3

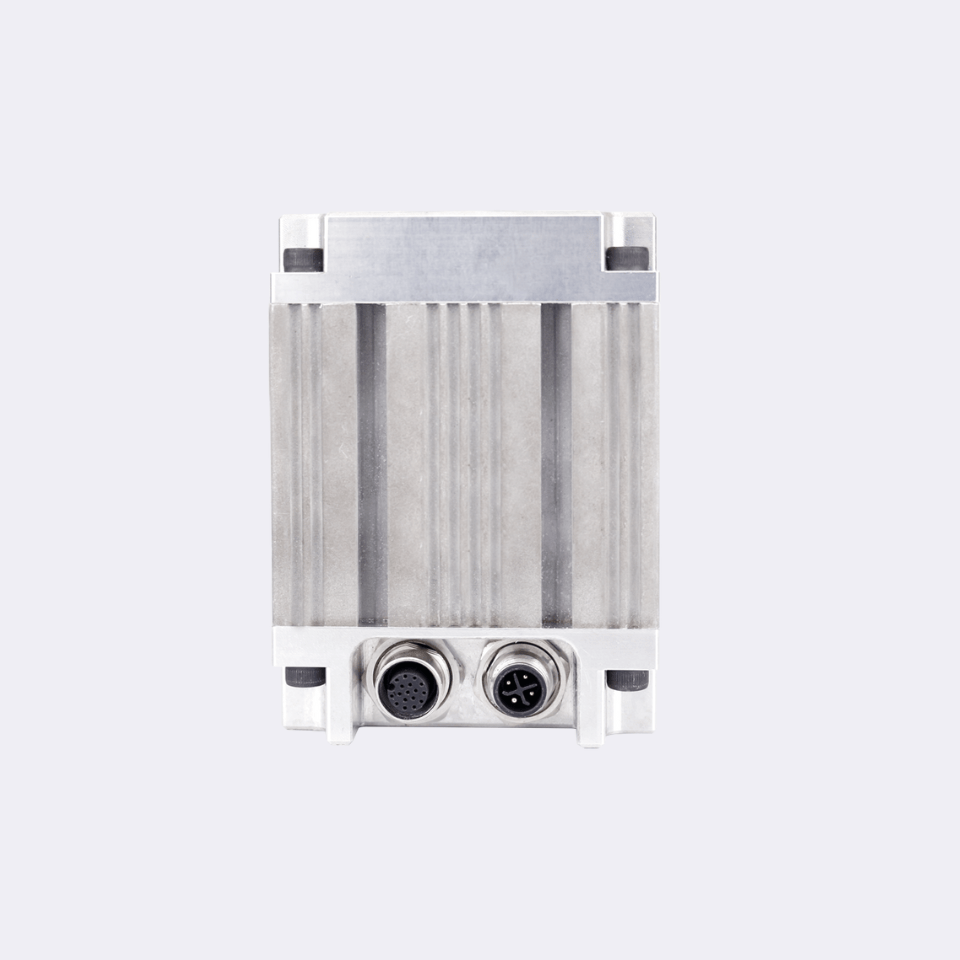

86SERVO_T600 - 2

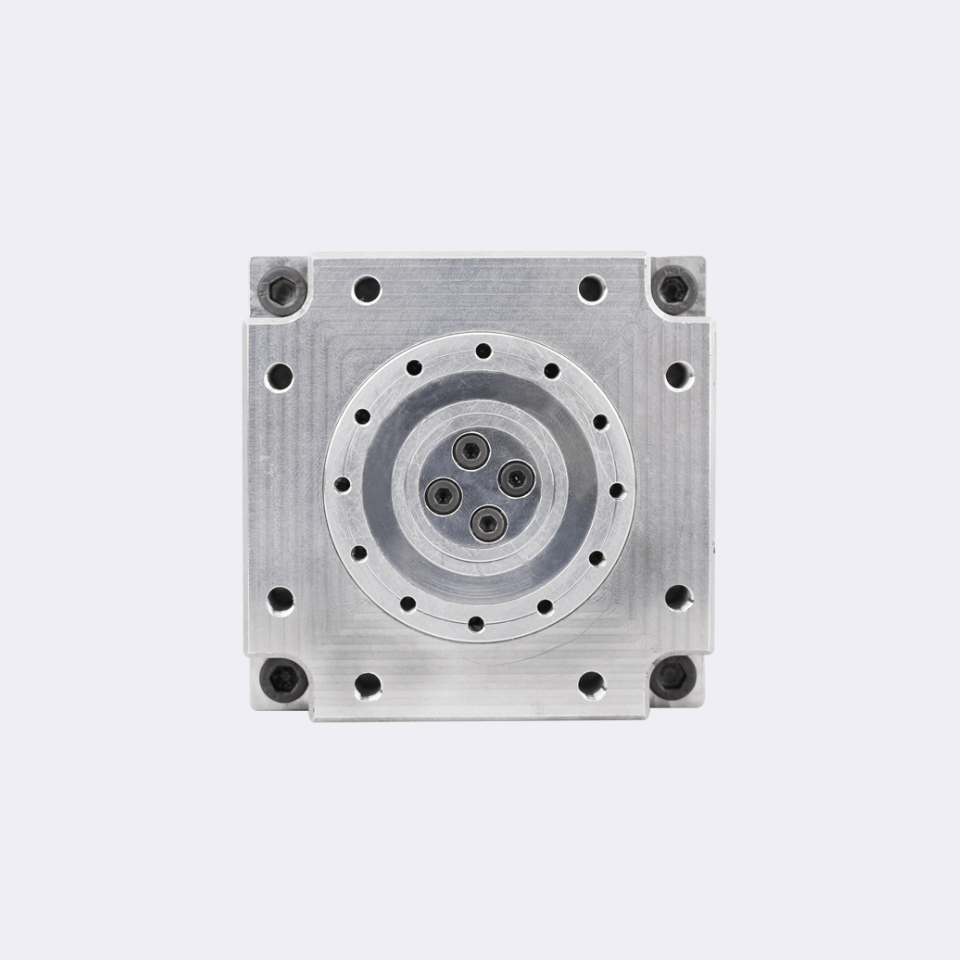

86SERVO_T600 - 1

86SERVO T600

US$ 800.00

86SERVO T600 is an electric motor that can precisely control angle, speed, and position based on control signals.

  • DMP Vortex86EX2 533MHz+300MHz 32-bit x86
  • Position Sensor: Absolute optical encoder 22bits PPR
  • Communication: RS485 x 2 ports, 6Mbps
  • Gear Box Backlash: <2 arcmin (0.033°)
  • Command Protocol: EtherCAT / Modbus RTU (optional)
  • Dimension: 76(W) x 76(H) x 112(L)mm
  • Rotational Range: 0°~ 360°, endless turn

庫存量: 尚有庫存

貨號: 86SERVO-T600 分類: 標籤: 品牌：
來信詢問

86SERVO T600

86SERVO T600 is an electric motor that can precisely control angle, speed, and position based on control signals. It typically consists of a motor and a controller, where the controller receives feedback signals from sensors, calculates the required control signals based on set target values, and thus achieves precise control of the motor. Servo motors are characterized by fast response, high precision, and flexible control. They are widely used in fields requiring high-precision motion control, such as industrial automation, robotics, and CNC machines.



DM
DM
DM

重量 1600 公克
尺寸 112 × 76 × 76 公厘
電源供應

24V~48V
製造商

ICOP Technology

規格

處理器 DMP Vortex86EX2 533MHz+300MHz 32-bit x86
Position Sensor Absolute optical encoder 22bits PPR
通訊 RS485 x 2 ports, 6Mbps
Gear Box Backlash <2 arcmin (0.033°)
Command Protocol EtherCAT / Modbus RTU (optional)
重量 1600g
尺寸 76(W) x 76(H) x 112(L)mm
Rotational Range 0°~ 360°, endless turn
馬達 DMP high performance slotless brushless DC motor (240W)
Gear Reduction Ratio 111:1
Peak Torque 60.0 N-m (612 Kgf-cm) @48Vdc
Max Speed 110 RPM @(612 Kgf-cm)@48Vdc
Torgue Sensor Range 0-60 N-m
工作溫度 -20°C ~ +70°C
Voltage Recommended 24Vdc~48Vdc
材料 Metal gear, Aluminum alloy case

86SERVO-T600_Datesheet
