This article will tell you how to set up the COM port 1 through BIOS.
How to set up COM Port 1 via BIOS
- When the product is turned on, press

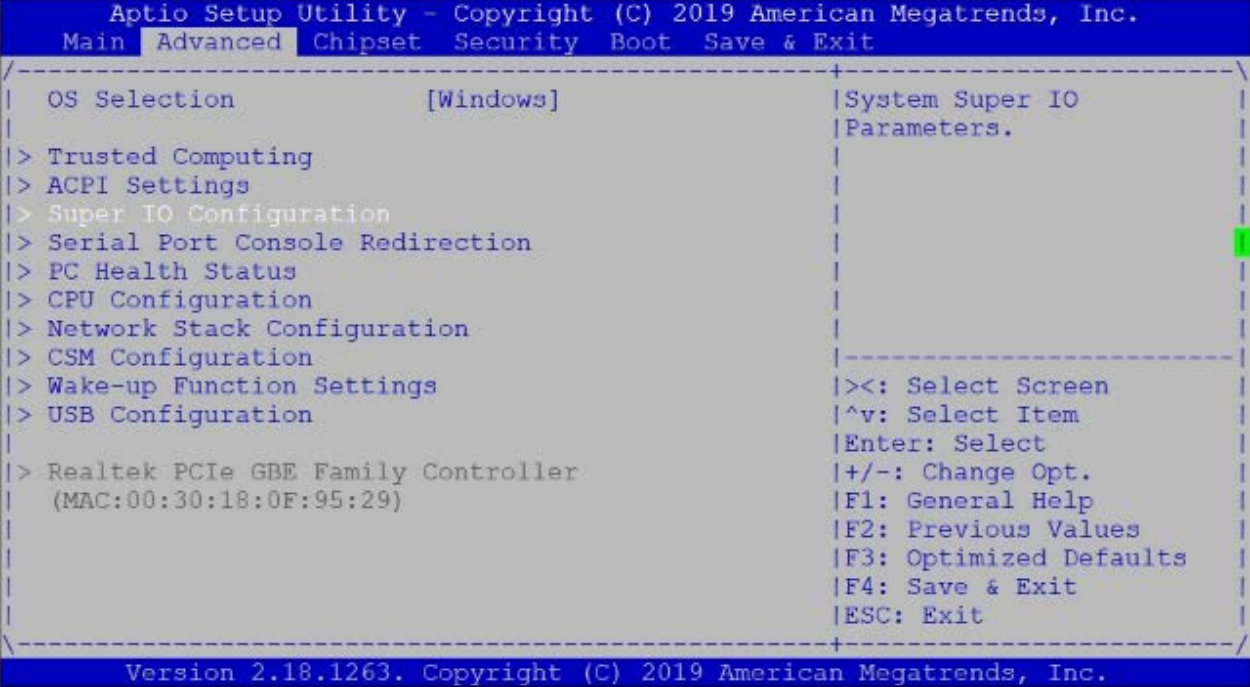

DeleteorDelto enter the BIOS - After entering BIOS, go to the
Advanceddirectory and selectSuper IO Configuration/Super%20IO%20Configuration.png)

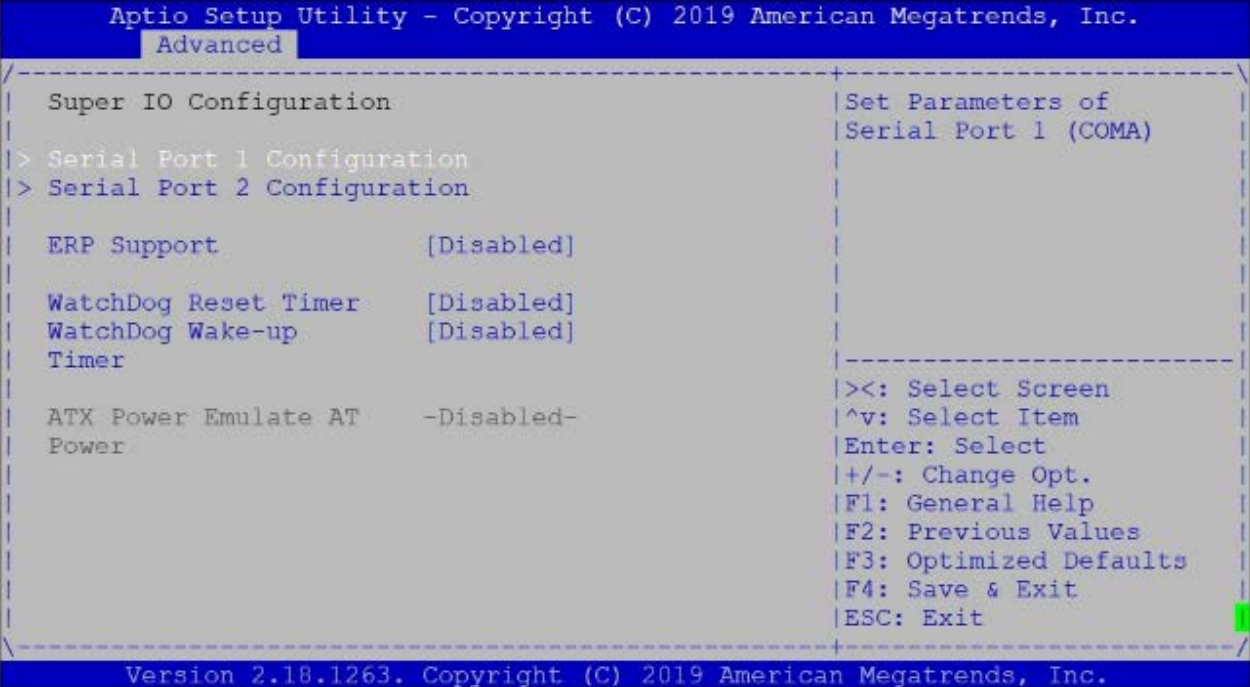

- Select
Serial Port 1 Configuration/Serial%20Port%201%20Configuration.png)

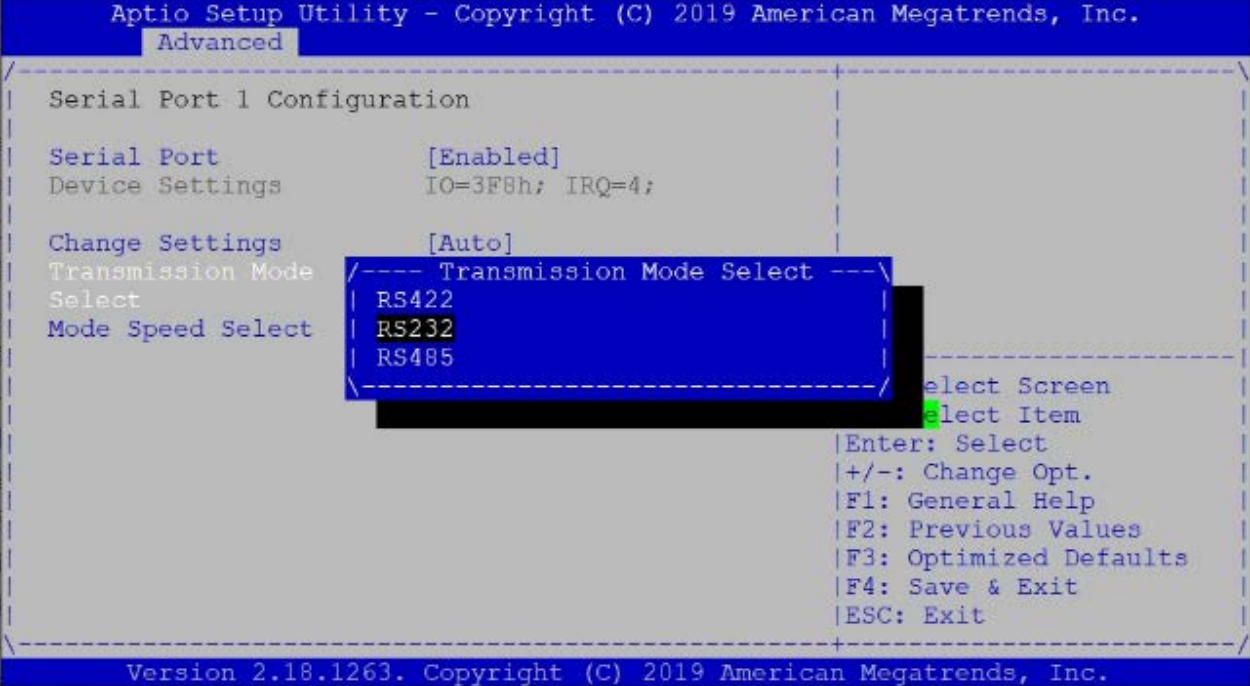

- Go to Transmission Mode and set RS232/422/485 function
/Transmisson%20Mode%20Select.png)

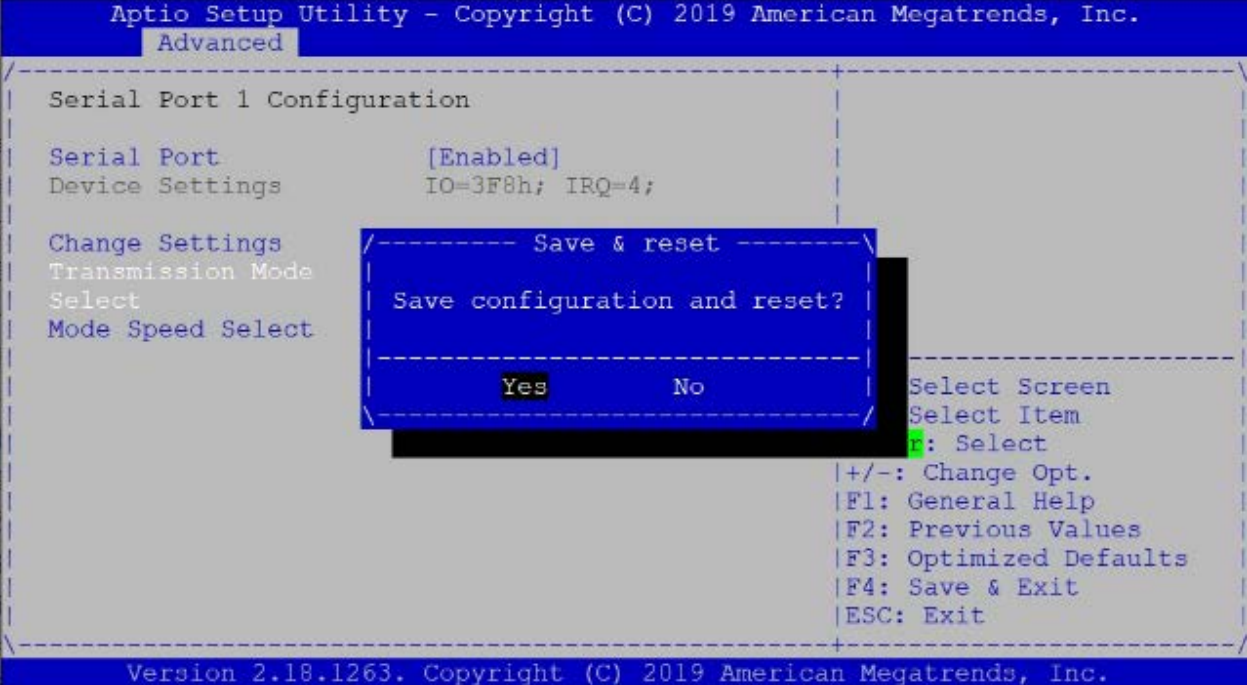

- After completing the setup, press
F4to access the settings and reboot/Save%20and%20Reset.png)
Main feature of PPC-090T-APL:
- Intel® Apollo Lake N4200/N3350 SoC Processor
- 4GB / 8GB SO-DIMM DDR3
- 2S/3U/HDMI/GLAN/Audio/M.2-2242/SATA/MiniPCIe/12V
- 9″TFT1024×600解像度LCD、抵抗膜式または投影型静電容量式タッチスクリーン
- 9″ TFT 1024×600 Resolution LCD with Resistive or Capacitive touch screen
- HDMIを第二ディスプレイとして使用する
- 2.5インチSATA HDD/SSD対応（SATA III 6.0Gb/s）。
- M.2スロット対応（M-key、SATAインターフェース、2242）
For more info and sample requests, please write to info@icop.com.twお近くの ICOP支店にお電話いただくか、 世界各国の公式代理店にお問い合わせください。
