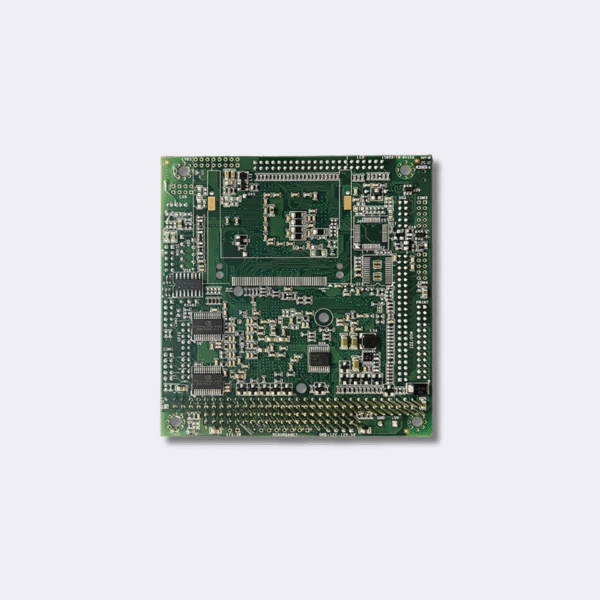

VDX-6372RD-V2

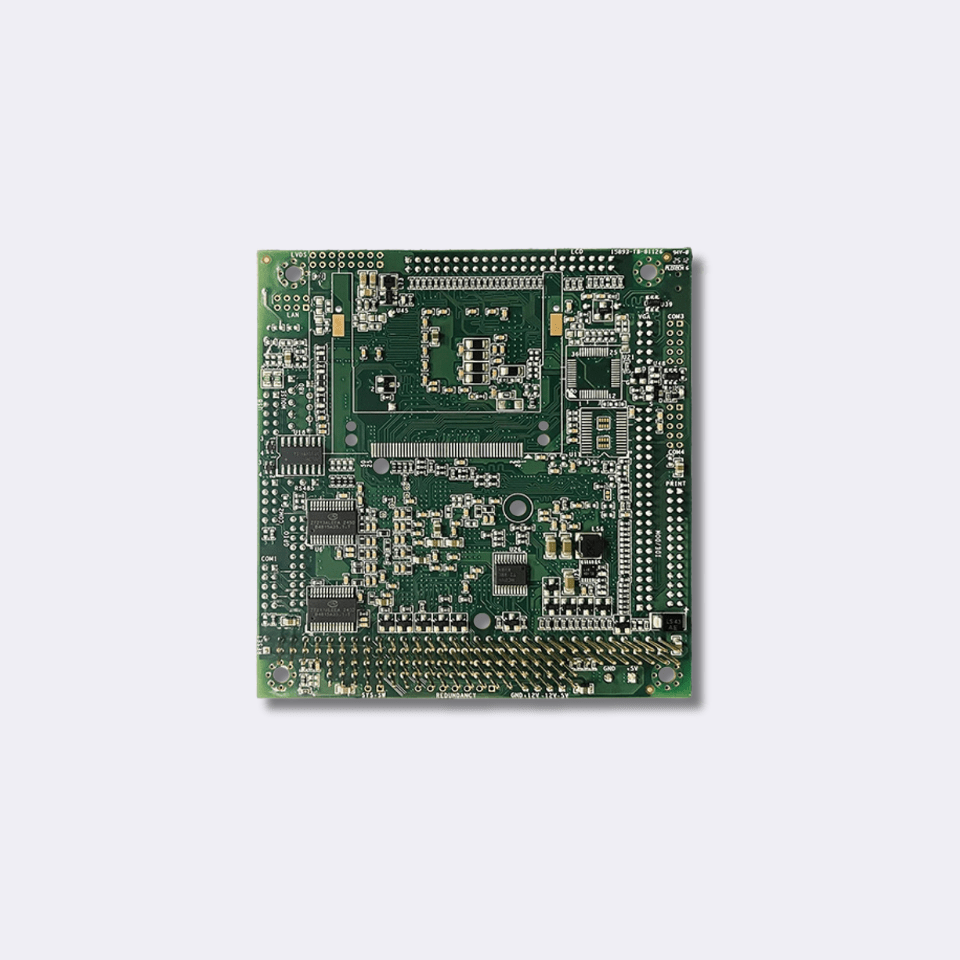

VDX-6372RD-V2_1

VDX-6372RD-V2

US$ 262.00

  • DM&P SoC Vortex86DX- 600MHz
  • 256MB DDR2 onboard
  • 2S / 2U / VGA / LCD / LPT / PWM / 16GPIO / IDE
  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

Disponibilidad: En existencia

SKU: VDX-6372RD-V2 Categoría: Etiqueta: Brand:
Send Inquiry

The VDX-6372RD-V2 family of low-power x86 embedded controller is designed to meet PC/104 specification and integrated with the following features.

The VDX-6372D-V2 PC/104 family of embedded controllers are designed with backward compatibility in mind to provide a migration path for projects facing end-of-life challenges with their existing x86 based PC/104 controller. The VDX-6372D-V2 family of controller is designed as a plug-in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.

VDX-6372D-V2 is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics, machinery control, And more…application that required small footprint, low-power and low-cost hardware with an open industry standard such as PC/104.

Contact info@icop.com.tw for detailed info.

Peso 90 g
Dimensiones 320 × 200 × 60 mm
RAM

256MB
I/O Interface

Parallel, RS-232, RS-485, LAN, GPIO
Display Interface

VGA, LCD, LVDS
Manufacturing

ICOP Technology

Specifications

CPU DM&P SoC CPU Vortex86DX- 600MHz
Real-Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache, L2 Cache 128KB
BIOS AMI BIOS
Bus Interface PC/104 Standard Compliant
System Memory 256MB DDR2 Onboard
Watchdog Timer Software programmable from 30.5 us to 512 seconds x2 sets
(Watchdog 1 fully compatible with M6117D)
VGA SM712 Chipset with VGA, TFT-LCD, and 18-bit LVDS Flat Panel Interface
VGA: Maximum resolution up to 1280 x 1024 @ 60Hz
TFT-LCD: Maximum resolution up to 1024 x 768 @ 60Hz
I /O Interface Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x1
RS-232/422/485 port x1 (RS485: Auto Direction)
Parallel port x1
USB port x2 (USB 2.0 version)
16-bit GPIO port x1
Connectors 2.00 mm Ø 44-pin box header for IDE x1
2.00 mm Ø 44-pin box header for LCD x 1
2.00 mm Ø 10-pin box header for VGA x1
2.00 mm Ø 10-pin box header for USB x1
2.00 mm Ø 26-pin box header for Print x1
2.00 mm Ø 20-pin box header for 16-bit GPIO x1
2.00 mm Ø 10-pin box header for RS-232 x2
2.54 mm Ø 5-pin box header for Keyboard x1
2.54 mm Ø 5-pin header for Mouse x1
2.54 mm Ø 4-pin header for DC-in x1
2.54 mm Ø 3-pin header for RS-485 x1
2.54 mm Ø 2-pin header for Reset x1
2.54 mm Ø 7-pin header for Redundancy x1(Opt)
2.54 mm Ø 2-pin header for SYS-Fail-SW- x1(Opt)
1.25 mm Ø 6-pin Wafer for JTAG x1
Flash Disk Support 44-pin IDE Flash Disk( EmbedDisk 16MB or above)
44-pin IDE to Micro SD (Optional)
PWM 16~24 channels
Power Requirement Single Voltage +5V @ 600mA
Dimension 90 X 96mm (3.54 x 3.77 inches)
Weight 80g
Operating Temperature -20°C ~ +70°C
-40°C ~ +85°C (Optional)
