DM&P SoC Vortex86DX- 800MHz
-
SOM304RD-52VINE1
System on Module - ICOP Proprietary US$ 210.00- DM&P SoC Vortex86DX- 800MHz
- 256MB DDR2 onboard
- 5S / 4U / VGA / LCD / LAN / LPT / 32GPIO / PWM / IDE
- Onboard 4MB SPI Flash
- 304-pin module, Standard ISA bus
- Support LPC Bus
- 70 (L) x 70 (W) x 10.5 (H)mm, DC +5V @ 600mA
- Optional: Onboard flash up to 4GB, up to 32 PWM
-
VDX-6324RD
Half-size SBC US$ 285.00- DM&P SoC Vortex86DX – 800MHz
- 4S / 4U / VGA / LCD / LAN / LPT / PWM / 16GPIO / CF / IDE
- 256MB DDR2 onboard
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 4MB SPI Flash
- PC / 104 Connector Onboard
- Optional: Onboard Flash Disk / CF socket / PCI-104 Connector / Audio
-
SOM304RD-52VIDE1
System on Module - ICOP Proprietary US$ 230.00- DM&P SoC Vortex86DX- 800MHz
- 256MB DDR2 onboard
- 5S / 4U / VGA / LCD / LAN / LPT / 32GPIO / PWM / IDE
- Onboard 4MB SPI Flash
- 304-pin module, Standard ISA bus
- Support LPC Bus
- 70 (L) x 70 (W) x 10.5 (H)mm, DC +5V @ 600mA
- Onboard flash 2GB
-
VDX-6353RD-V2
PC/104 SBC US$ 296.00- DM&P SoC Vortex86DX- 800MHz
- 256MB / 512MB DDR2 onboard
- 4S / 2U / VGA / LCD / LVDS / LAN / LPT / PWM / SPI / 16GPIO / CF / IDE
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 4MB SPI Flash Disk
- Optional: USB Audio Controller
-
SOM304RD-52PINE1
System on Module - ICOP Proprietary US$ 200.00- DM&P SoC Vortex86DX- 800MHz
- 256MB DDR2 onboard
- 4S / 4U / LAN / LPT / 32GPIO / I2C / PWM / IDE / PCI / ISA
- Onboard 4MB SPI Flash
- 304-pin module, PCI, standard ISA bus
- Support LPC Bus
- 70 (L) x 70 (W) x 10.5 (H)mm, DC +5V @ 480mA
- Optional: Onboard flash up to 4GB, up to 32 PWM
-
SOM200RD-52PCNE1
System on Module - ICOP Proprietary US$ 198.00- DM&P SoC Vortex86DX- 800MHz
- 256MB DDR2 onboard
- 5S / 4U / LAN / LPT / 32GPIO / I2C / PWM / IDE / PCI
- Onboard 4MB SPI Flash
- 200-pin module, Standard PCI bus
- Support LPC Bus
- 52 (L) x 52 (W) x 10.5 (H)mm, DC +5V @ 420mA
- Optional: Onboard flash up to 4GB, up to 32 PWM
-
VDX-6328RD-NF
3.5" SBC US$ 306.00- DM&P SoC Vortex86DX- 800MHz
- 256MB / 512MB DDR2 onboard
- 4S/3U/VGA/LCD/LVDS/LAN/PWM/Audio/16GPIO/CF
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 4MB SPI Flash Disk
- PC / 104+ Connector Onboard
-

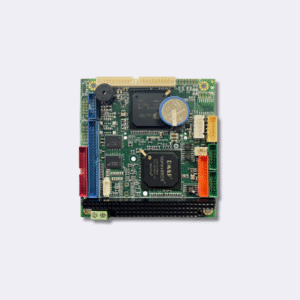

VDX-6372RD-V2
PC/104 SBC US$ 262.00- DM&P SoC Vortex86DX- 600MHz
- 256MB DDR2 onboard
- 2S / 2U / VGA / LCD / LPT / PWM / 16GPIO / IDE
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
-
VDX-6316RD
Tiny SBC US$ 204.00- DM&P SoC Vortex86DX-800MHz
- 256MB DDR2 onboard
- 2S / 2U / LPT / 32GPIO / IDE
- Operation Temperature: -20~+70°C / -40°C~+85°C (Optional)
- Onboard 4MB SPI Flash Disk
- 16bit x-ISA
- Optional：512KB SRAM
-
VDX-6315RD
Tiny SBC US$ 230.00- DM&P SoC Vortex86DX-800MHz
- 256MB DDR2 onboard
- 4S / 2U / LAN / LPT / 32GPIO / IDE
- Operation Temperature: -20~+70°C / -40°C~+85°C (Optional)
- Onboard 4MB SPI Flash Disk
- 16bit x-ISA
- Optional：512KB SRAM
-
VDX-6314RD
Tiny SBC US$ 285.00- DM&P SoC Vortex86DX-800MHz
- 256MB DDR2 onboard
- 4S / 2U / VGA / LVDS / LAN / 16GPIO / IDE
- Operation Temperature: -20~+70°C / -40°C~+85°C (Optional)
- Onboard 4MB SPI Flash Disk
- Optional：Audio
-
VDX-DIP-PCIRD
System on Module - ICOP Proprietary US$ 171.00- DM&P SoC Vortex86DX- 800MHz
- 256MB DDR2 onboard
- 5S / 4U / LAN / IDE / PCI / 32GPIO / PWM
- Onboard 4MB SPI Flash
- 204-pin module, 204 pins for for PCI & Multi-I / O
- Support LPC Bus
- 70 x 45mm, DC +5V @ 340mA
- Optional: up to 3 PWM
