ICOP PPC-TGL Touch Panel Computer with Intel® Core™ i5-1135G7 CPU, High Performance, Smart, Rugged and Scalable

In today’s fast-paced industrial world, performance, reliability, and adaptability are the cornerstones of operational excellence. As automation and edge computing become more mission-critical, businesses need solutions that can keep pace with increasing complexity and environmental challenges.

ICOP Technology proudly introduces its next-generation PPC-TGL Series — a comprehensive lineup of industrial-grade touch panel computers built to excel in harsh conditions, high-demand workloads, and diverse deployment scenarios. Powered by Intel® Tiger Lake processors, these systems deliver robust computing, outstanding graphics, and versatile I/O — all within ruggedized enclosures optimized for industrial use.

Series-Wide Advantages at a Glance

• Intel® Core™ i5-1135G7 CPU with Iris® Xe Graphics: 4C/8T up to 4.2GHz — ideal for edge AI, data logging, and advanced HMIs.
• Wide temperature range: 0°C~60°C (standard); -20°C~60°C (optional extended version).
• High-speed expandability: NVMe SSD, DDR4 up to 64GB, and M.2 M-Key/E-Key for wireless/GPS.
• Versatile I/O: 2 LAN (2.5GbE + 1GbE), 2 HDMI, 2 DP, 4 USB 3.2, 2 USB 2.0, RS-232/422/485 COM.
• Rugged design: Fanless, IP65-rated front panel, aluminum die-cast chassis.
• Flexible mounting: VESA and panel mount for walls, cabinets, kiosks, or mobile platforms.

---

PPC-150T-TGL – 15” Resistive Touch Panel PC

The Classic Industrial Workhorse

When your application calls for stability, precision, and legacy interface compatibility, the PPC-150T-TGL delivers. Equipped with a 15” XGA resistive touchscreen, it’s ideal for gloves-on operations and dusty environments.

Best For:

✔ Traditional control panels
✔ Harsh industrial conditions
✔ HMI systems with button-based UIs

Key Specs:

• 15” XGA (1024×768) with resistive touchscreen
• Dual HDMI and Dual DP for multiple external displays
• Full industrial I/O: 2 LAN, RS-232/422/485 and USB ports
• Built for environments where accuracy and durability matter

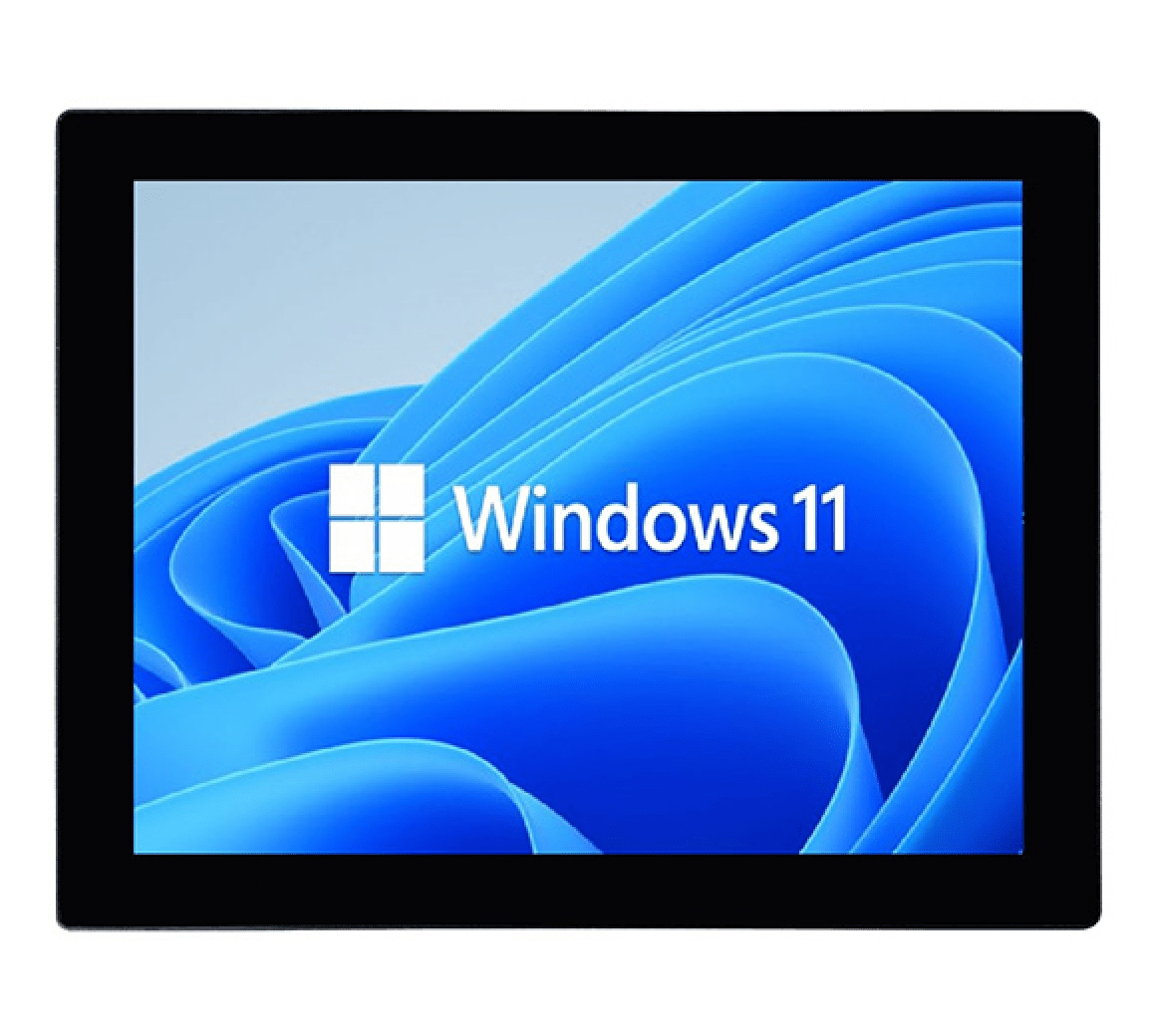

PPC-150P-TGL – 15” Projected Capacitive Touch

Interactive Control Meets Industrial Strength

Prefer a sleek, modern touch experience? The PPC-150P-TGL offers the same powerful internals as the 150T, but with a multi-point PCAP touch panel, making it perfect for more visual and intuitive HMI use cases.

Best For:

✔ Smart manufacturing dashboards
✔ Intuitive HMIs with rich GUI and multi-touch solution
✔ Public terminals, kiosks

Key Specs:

• 15” capacitive touchscreen with 10-point multi-touch
• Same I/O and rugged features as the 150T
• Enhanced UI design flexibility

Big Performance in Tight Spaces

Compact doesn’t mean compromised. The PPC-104T-TGL offers industrial-grade processing and I/O in a smaller footprint – ideal for control cabinets, mobile carts, or embedded machine interfaces.

Best For:

✔ Equipment monitoring systems
✔ Compact industrial enclosures
✔ Light-duty mobile control units

Key Specs:

• 10.4” XGA with resistive touch display
• High-speed NVMe SSD support via M.2 (2242/2280)
• Rich I/O: 2 LANs, 4 COM, 6 USB, GPIO

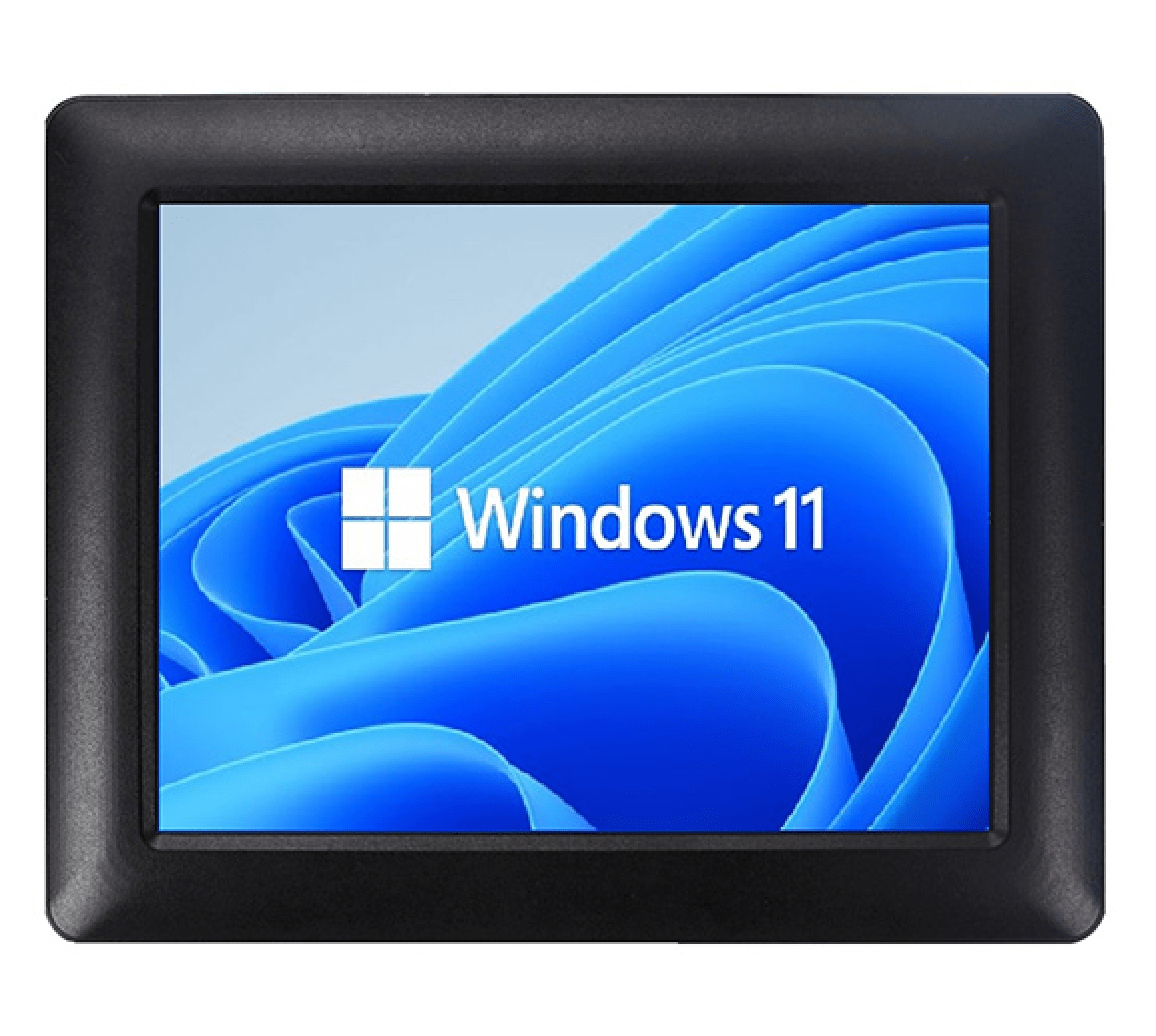

PPC-090T-TGL – 9” Ultra-Compact Panel PC

The Smallest Tiger Lake Panel PC – Built to Go Anywhere

The PPC-090T-TGL is the smallest in the family, but just as capable. Its ultra-compact form factor and robust thermal/mechanical design make it perfect for embedded control or mobile platform applications.

Best For:

✔ POS (Point of Sale) and vending Machine
✔ Portable or mobile service platforms
✔ Space-limited control points or kiosks

Key Specs:

• 9” WSVGA (1024×600) with resistive or Projected capacitive touch screen options
• Same industrial grade I/O in a mini housing
• Supports VESA mount for embedded setups

---

Built to Perform. Designed to Endure.

From smart factories and transportation hubs to utility plants and medical systems, the PPC-TGL Series is built to thrive in Industry 4.0 and IIoT environments. With long lifecycle availability, backward-compatible I/O, and flexible mounting, it’s your reliable choice for both greenfield deployments and legacy system upgrades.

Not sure which PPC-TGL model is the best fit for your application?

Our industrial computing specialists are here to help — whether you’re looking for a compact display for space-constrained environments, a rugged solution for challenging industrial conditions, or a high-performance panel PC for demanding edge computing tasks.
We also offer OEM/ODM customization services, including tailored I/O configurations, mechanical design modifications, and software integration to meet your specific project needs.

---

For more information and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
