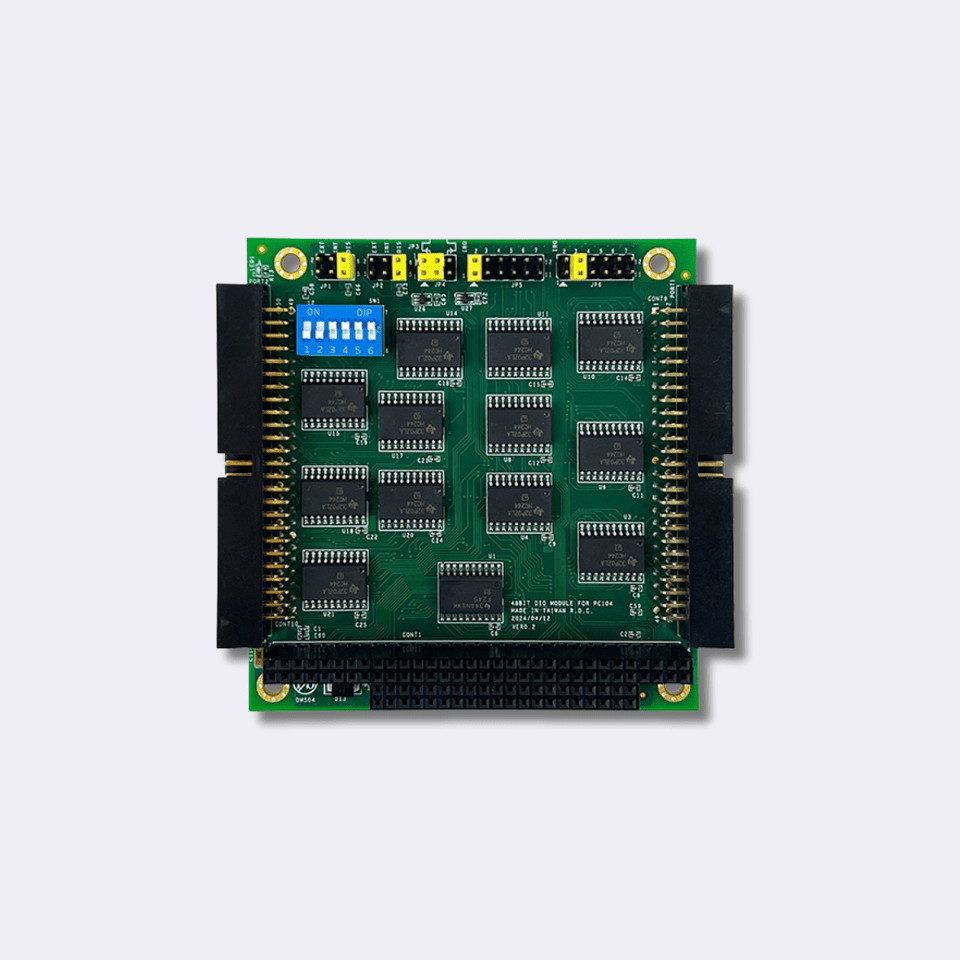

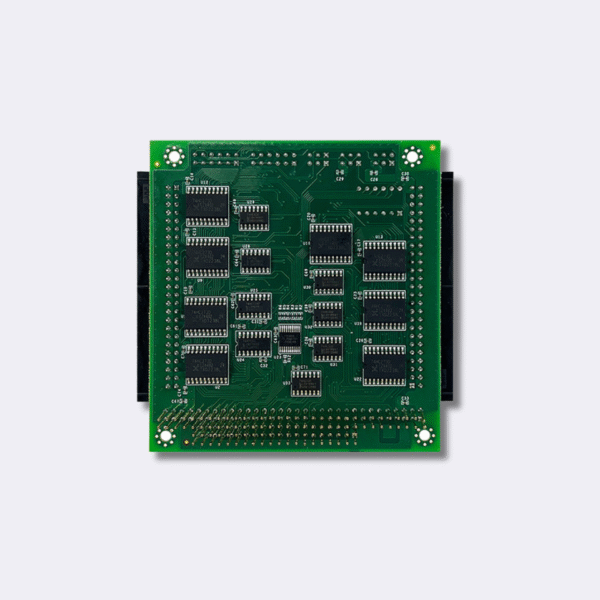

ICOP-0101-V2

The ICOP-0101-V2 is a 48-bit digital I/O module. The module can be used together with TTL level input /output circuitry. Its 48 bits are arranged in two 24-bit digital I/O groups. Each group emulates an 8255 PPI (programmable peripheral interface) mode 0 but has a higher driving capacity than the 8255 PPI. Each 24-bit group is divided into three 8-bit ports. A port can be configured to function as input or output.

• 48 digital I/O lines (2 groups)
• El grupo emula el modo 0 de 8225 PPI.
• Buffered circuits for higher driving capacity than 8255 PPI
• Bit 0 of port C can generate an interrupt to IRQ 2, 3, 4, 5, 6, 7
• Interrupt trigger on rising / falling edge
• Lectura del estado de salida
• Pin-compatible with OPTO-22 I/O module racks
• Velocidad de transferencia: 300 KB/seg. (típica)
• Salida digital:
  • Logic level 0: 0.5 V max. @ 24 mA sink
  • Logic level 1: 2.0 V min. @ 15 mA source
• Entrada digital:
  • Logic level 0: 0.8 V max.
  • Logic level 1: 2.0 V min.
